FlowKooler pumps patented impeller designs help stop engines from overheating and reduces engine temperature up to 30 degrees by doubling the flow of coolant and building system pressure.

Home / Products / 1735 1975-1979 232 258 AMC Jeep IHC 4-1/16" water pump

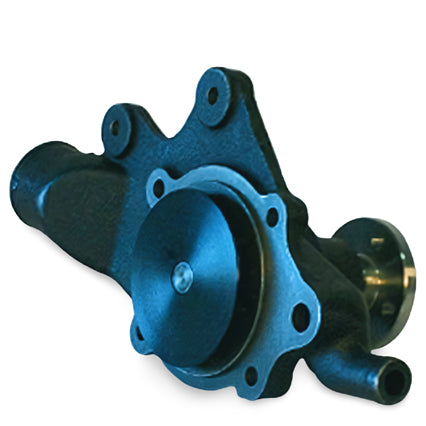

1735 1975-1979 232 258 AMC Jeep IHC 4-1/16" water pump

$129.00

1735 1975-1979 232 258 AMC Jeep IHC 4-1/16
1735 1975-1979 232 258 AMC Jeep IHC 4-1/16
1735 1975-1979 232 258 AMC Jeep IHC 4-1/16
1735 1975-1979 232 258 AMC Jeep IHC 4-1/16
lView fullsize image

1735 1975-1979 232 258 AMC Jeep IHC 4-1/16" water pump

$129.00

The 1735 pump has an impeller with an increased vane count and a reduced impeller vane clearance.  It achieves greater flow rates, higher head pressure and a more efficient flow. The impeller color is due to Type II Class II military grade surface coating which protects against corrosive fluids.

FlowKooler introduced the first hi flow pumps and continues to improve impeller design. Why is increased flow so important to cooling a hot 258 engine? Because it has been proven time and time again that reducing the cycle time between the heat source and the heat sink creates more opportunities to shed heat and drop engine temperatures.

From 0-3,300 RPM…Nothing Beats a FlowKooler!

General Specifications:
Type of Material of Pump Body Cast Iron
Number of Blades on Impeller 8 CNC Aluminum
Direction of Rotation CW
Fan Hub Working Height 4-1/16"
Shaft Diameter 5/8"
Inlet Outside Diameter 1 3/4"
Hose Connections: 1st 2nd
Gender M NA
Diameter 5/8" NA
Threaded No NA
Other Special Features:
  • CNC machined impeller with 60% more vane
  • Swept blades for clockwise rotation e.g V belts
  • Fits AMC & Jeep applications
  • Alternative Part Numbers 8125501, 8126772, 8129459, J8125501, J8126772, J8129459, J9990266, J9990757, JR775048
Parts Contained in Box:
Mounting Gaskets, Installation Sheet, FlowKooler Decal
Make Model Year Block CID Liters
amc amx 79-78 L6 232 3.8L
amc amx 79-78 L6 258 4.2L
amc concord 79-78 L4 122 2.0L
amc concord 79-78 L6 232 3.8L
amc concord 79-78 L6 258 4.2L
amc gremlin 78-75 L6 232 3.8L
amc gremlin 78-75 L6 258 4.2L
amc gremlin 78-77 L4 122 2.0L
amc hornet 77-75 L6 232 3.8L
amc hornet 77-75 L6 258 4.2L
amc matador 78-75 L6 258 4.2L
amc pacer 78-75 L6 232 3.8L
amc pacer 79-75 L6 258 4.2L
amc spirit 1979 L4 232 2.0L
amc spirit 1979 L6 258 4.2L
jeep cherokee 79-75 L6 258 4.2L
jeep cj series 78-75 L6 232 3.8L
jeep cj series 79-75 L6 258 4.2L
jeep j series pickup 79-75 L6 258 4.2L
